Item specifics
  • Keystone Correction: None
  • Model Number: KB630
  • Use: Portable Projector,Pico Projector
  • Weight: 0.3kg
  • Color: Black
  • Connectivity: Wireless
  • Function 1: Keyboard layput
  • Interface: USB
  • Function 2: Mouse
  • Function 3: Bluetooth speaker
  • Model: KB630
  • Function 4: Built-in microphone,hands-free call
  • Compatible with: IOS,Android,Windows,Mac OS X
  • Features: Multimedia Integration, Virtual Laser
Product Description

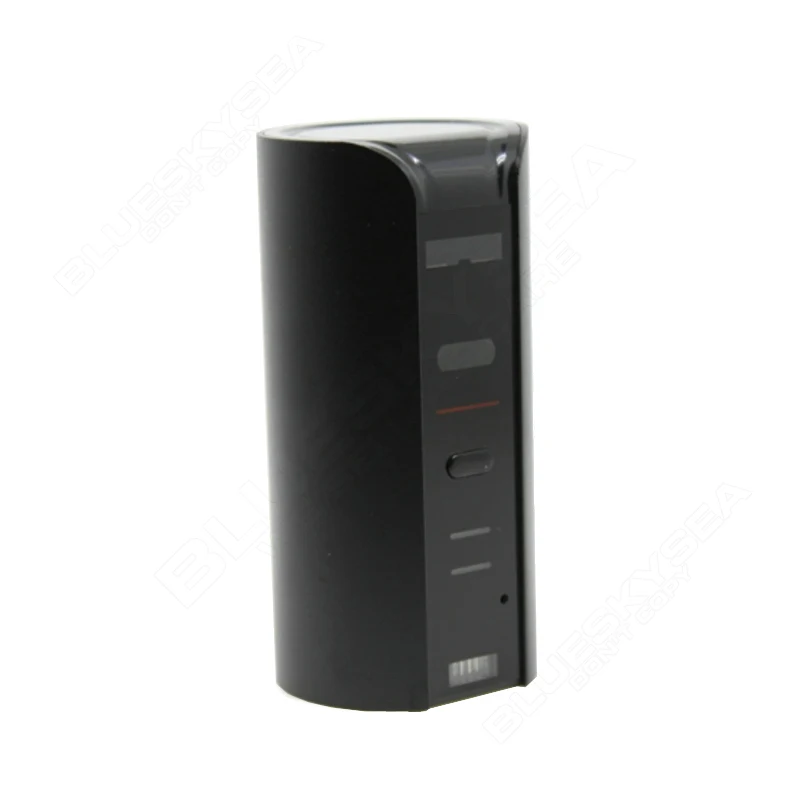

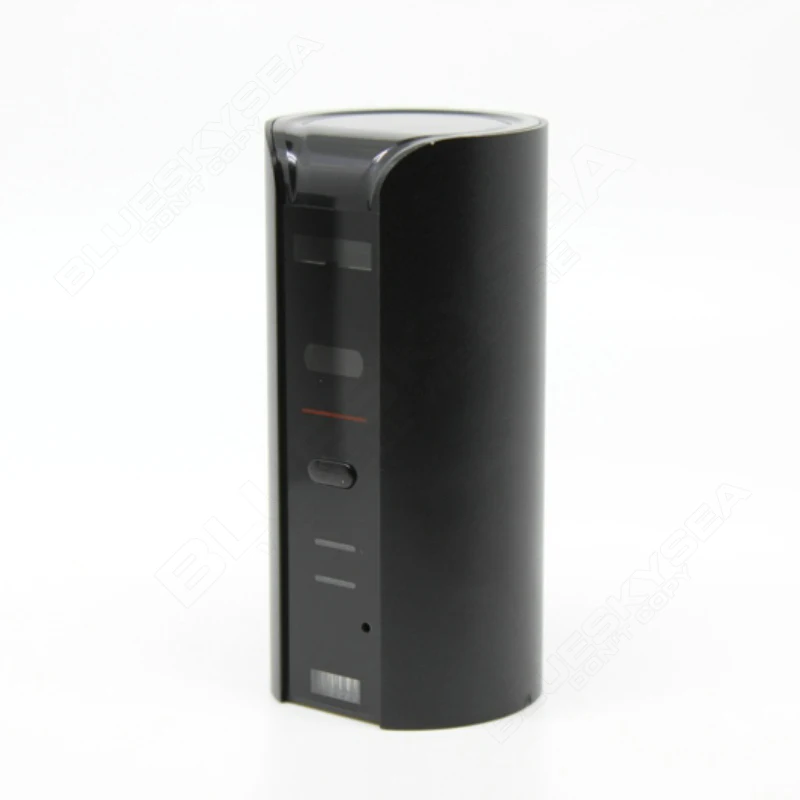

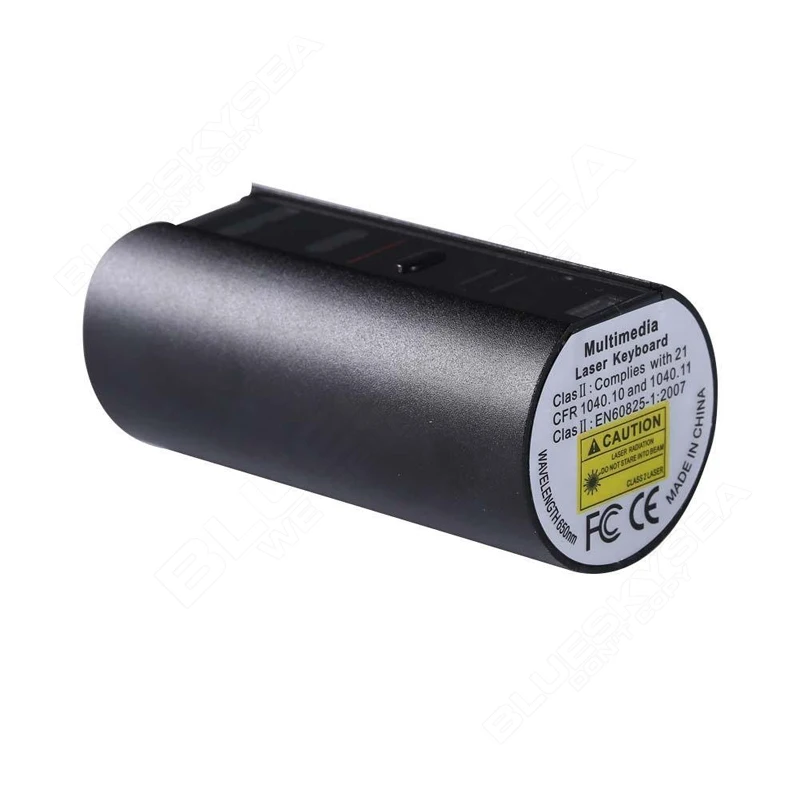

Free shipping!Virtual Laser Projection Keyboard Wireless Bluetooth For Smartphone Tablet PC AP

!!Ples Note:This item just only for the Black one,If you want the Silver,ples leave a message or contact us.Thanks a lot!!


English QWERTY keyboard layout
Full size key pitch and shortcut keys for ease of operation
Mouse fuction
Bluetooth speaker
Built-in microphone,hands-free call
Bluetooth connection 3.0
Built-in Lithium-ion Polymer rechargeable battery for mobility and convenience
Compatible with latest operating systems: Windows XP & later, Windows Phone 7 & later, iOS4 and later, Android 2.1 and later, Mac OS X & late

Note:For desktop that is not have bluetooth, need to be equipped with a Bluetooth receiver.

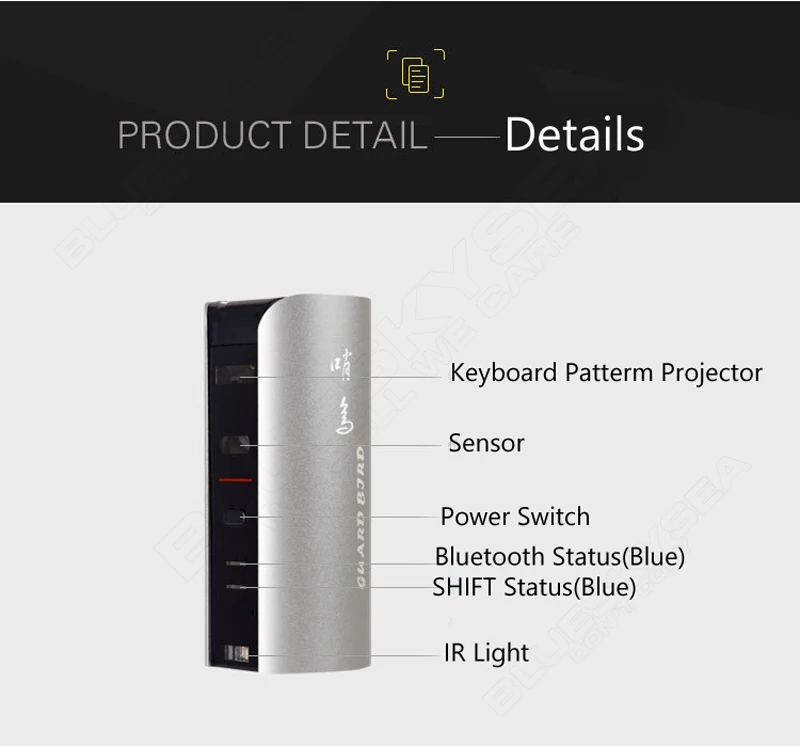

Projector: laser projects an image of keyboard pattern onto a flat surface in front of the typist
Sensor: detects reflection of infrared and triangulates the location to determine a keystroke
IR Light: emits an invisible plane of light to blanket operational area



Delivery time Order around 20Work days
Sample around /days
keyboard layout Approx. 19mm Pitch, QWERT Y Layout
light source red laser
keyboard(mouse) size Approx. Width : 240mm, Height: 100mm
Keyboard(mouse) Location Approx. 80mm from the bottom of device
Project Surface Non-reflective, opaque flat surface
Recognition Rate Approx. up to 350 characters per minute
Operating Surface Any firm flat surface
External Power Supply USB Power / less than 5V 1000mA
Battery & Capacity Lithium-ion Polymer Battery,1100mAh(MA X)  3.7V
Battery Operating Time Approx. 200min
Battery Charging Time Approx. 120min
Bluetooth(bm20730) V3.0, HID Profile Ver 1.0
Frequency Range 2402-2480MHz
Channel 79
Modulation GFSK
Sound box power 3W

MIC Sensitivity
Size (mm) 78mm x 38mm x 38mm
Weight (g) 80g
colors Black/Silver


Connection via Bluetooth HID:

Multi-media Laser Keyboard supports Bluetooth HID
Connection via Bluetooth HID does not require installation of separate driver as long as the host device has HID compatibility.
Bluetooth 2.1 or higher required for connecting to some devices

Note:Multi-media Laser Keyboard will automatically attempt to re-connect to the recently connected devices. If no previous device is found then it will listen for a new connection with any available HID compatible device.

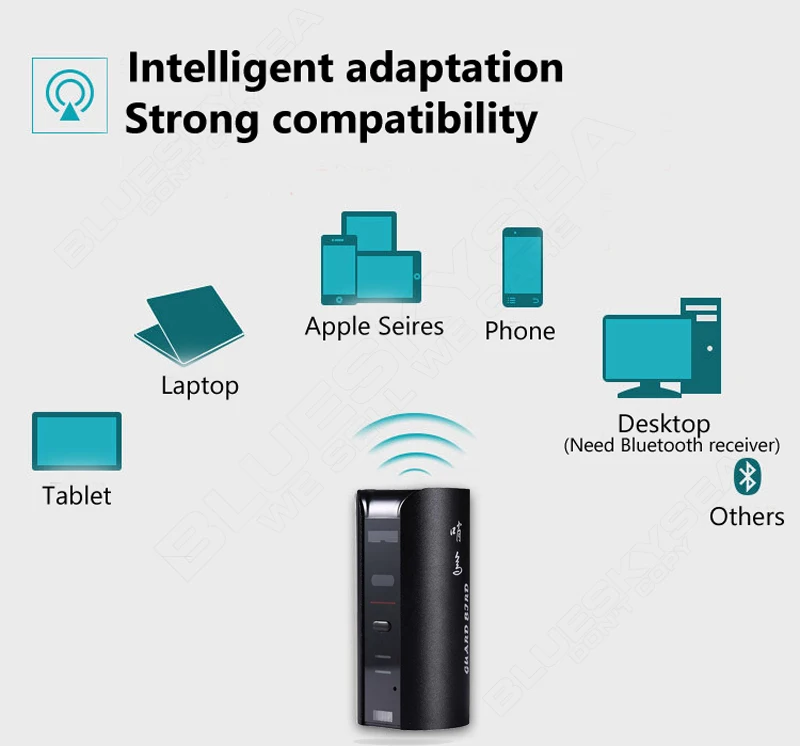

Bluetooth HID Compatible Device:

iOS4 and later
Mac OS
Android 2.0 and later
Blackberry 10
Windows XP/Vista/7/8 or higher
P S 3
Windows Phone 7/8 or higher

Packing List:

1 * Multi-media Laser Keyboard
1* USB Cable
1* User Manual

How to connect:

Power on Multi-media Laser Keyboard
Top blue LED will be blinking indicating the Multi-media Laser Keyboard is searching for a new device or previously paired devices within its proximity
Multi-media Laser Keyboard will automatically attempt to re-connect to the recently connected devices
This feature is added for convenience, assuming there is a single host device
If the Multi-media Laser Keyboard has re-connect the recently connected devices but it need pair for a new device, Turn the connected device Bluetooth off, the top LED will be blinking again
On primary device,go to Bluetooth setting;search for Bluetooth device
When the device discovers" Multi-media Laser keyboard",tap to connect
Upon successful pairing, the LED will stop blinking and go out

Package Included:

1* Multi-media Laser Keyboard
1* USB Cable

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in)
